For the safe transportation of potable water
The barrier pipe system of choice for your new or replacement drinking water supply, Puriton® is a cutting edge solution for the safe distribution of drinking water through contaminated land.

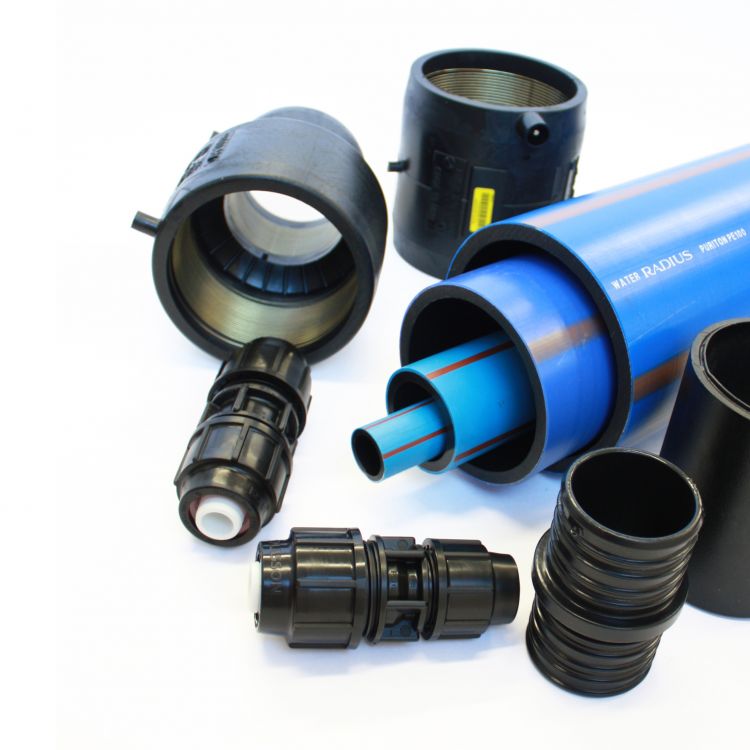

The Puriton® system consists of a multi-layer composite structure pipe, which combines the unique characteristics of polythylene with the exceptional barrier properties of aluminium, and a range of specifically designed fittings to suit the pipe. The system is quick and easy to install and is designed to provide a high level of protection against soil contaminants commonly found in brownfield sites.
| Application | Drinking water in contaminated land |
|
|---|---|---|
| Pipe Material | Polyethylene & Aluminium | |
| Pipe Colour | Light Blue / Dark Blue | |
| Diameter Range | 25mm to 180mm | Bespoke: No |
| SDR | 11 and 17 | Bespoke: No |
| Max Operating Pressure | 16 bar | |
| Lengths | 6 m, 12 m, 50 m, 100 m | Bespoke: Yes |
| Compliance / Approvals | BS 58588, WIS 4-32-19, WRAS | |
| Approved Fittings & Jointing Techniques | Puriton® plastic mechanical fittings Puriton® elctrofusion fittings Puriton® gun metal tapping tees Redman™ hydraulic compression fittings
|
|
| Suitability | New installations Pipe replacement Pipe rehabilitation |
|
| Jointing Techniques | Mechanical jointing Electrofusion Mechanical hydraulic compression |
|
| Jointing Equipment | C ring wrenches, electrofusion control box, Redman hydraulic pump | |
| Installation Techniques | Open-cut Directional drilling Pipe bursting |
|
To view all our downloadable resources visit our downloads page.
