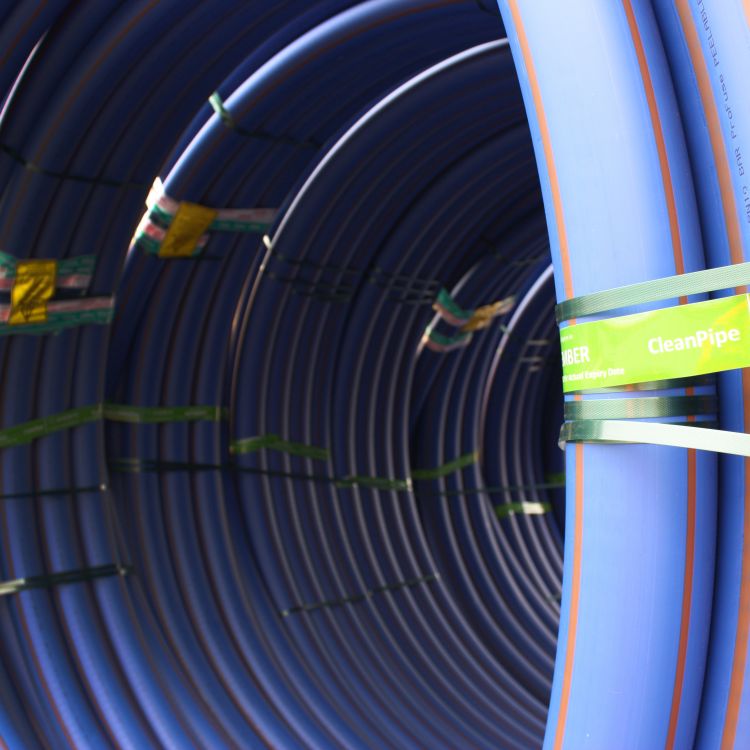

Factory sealed coils for potable water
A leading edge pipe innovation, CleanPipe™ is Radius Systems' unique range of factory sealed coils specifically designed for the safe distribution of potable water.
CleanPipe™ is fitted with factory fused internal seals that ensure that the pipe maintains its cleanliness from manufacture through to installation. The seals are developed to remove the need for pre-chloriation operations carried out before the pipe is installed, as they provide a tamper-proof, air and pressure-tight seal solution until the pipe’s point of connection.
| Application | Potable water |
|
|---|---|---|
| Pipe Material | Polyethylene | |
| Pipe Colour | Dark blue with brown stripes | |
| Diameter Range | 90 mm to 180 mm | Bespoke: No |
| SDR | 17 | Bespoke: No |
| Max Operating Pressure | 10 bar | |
| Lengths | 100 m | Bespoke: No |
| Compliance / Approvals | BS EN 12201 | |
| Approved Fittings & Jointing Techniques | Butt-fusion Spigot fittings Electrofusion fittings Redman™ hydraulic compression fittings |
|
| Suitability | New installations Pipe replacement Pipe rehabilitation |
|
| Installation Techniques | Sliplining Directional drilling Pipe bursting Open-cut |
|
